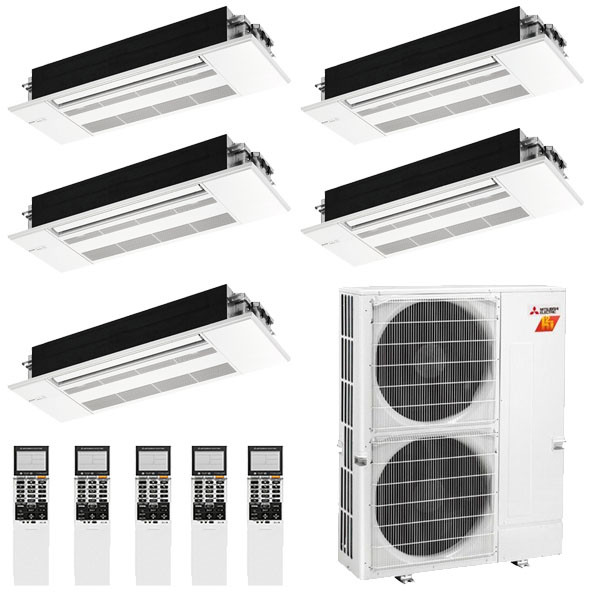

48,000 BTU 18.9 SEER Mitsubishi Five Zone H2i Hyper Heat Pump System 9+9+12+12+18 - Ceiling Cassette
Model: MXZ-8C48NAHZ / 2-MLZ-KP09NANA / 2-MLZ-KP12NANA / MLZ-KP18NANA2

Price as configured: $9,875.75

48,000 BTU 18.9 SEER Mitsubishi Five Zone H2i Hyper Heat Pump System 9+9+12+12+18 - Ceiling Cassette

By: Mitsubishi Model: MXZ-8C48NAHZ / 2-MLZ-KP09NANA / 2-MLZ-KP12NANA / MLZ-KP18NANA2 ID: 37057

More Views

Price as configured: $9,875.75

Bread Checkout

FREE SHIPPING
Mitsubishi
Authorized Mitsubishi Dealer
Ships in 4-6 Weeks
New

* Required Fields

Price as configured: $9,875.75

Accessories

Description

Details

The Mitsubishi Five Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 18 SEER, with an inverter-driven compressor, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit and each unit has its own wireless electronic temperature controller.

48,000 BTU 18.9 SEER Mitsubishi Multi-Zone Ductless H2i Hyper Heat Pump Condenser w/ Base Pan Heater

OVERVIEW

The Mitsubishi MXZ-8C48NAHZ2 is a heat pump condenser designed to be used in multi zone system setups. As one air handler is needed per room that you are trying to heat and cool, multiple single zone condensers can take up a lot of space in your yard, making a multi zone unit more practical in many applications. With its integrated drain pan heater allowing it to heat down to -13°F, the MXZ-8C48NAHZ2 will keep you warm even through the coldest months of the year.

FEATURES

  • 48,000 BTU multi zone heat pump condenser
  • Variable speed Inverter-driven compressor with quiet operation features
  • Requires a branch box
  • Hyper Heat technology, supporting enhanced comfort down to -13°F
48,000 BTU

The Mitsubishi MXZ-8C48NAHZ2 is rated to handle a total of 48,000 BTU, which generally should be the same or greater than the total BTU count across all air handlers that this unit is paired with. In some instances, a certified pairing will have a higher BTU count total than this condenser’s rating. This is intentional, as the condenser can easily handle more, however anything higher than this rating can potentially lower the speed that the unit can heat and cool, as well as limit the functional outputs of each air handler if they are all running at the same time.

Warranty

Mitsubishi offers a 5 year parts and 7 year compressor warranty on all of its products. When the unit is registered online through the manufacturer after an installation that follows your state and local codes, the warranty is upgraded to a 10 year parts and compressor warranty.

Required Equipment

The Mitsubishi MXZ-8C48NAHZ2 is designed with only one set of line set ports, allowing it to support a higher BTU output than units with multiple sets. As such, at least one branch box is required for this unit to function to allow it to connect to multiple air handlers. Along with branch boxes, this condenser requires air handlers, controllers, and other basic installation equipment to function, all of which are available at an additional cost.

Enhanced Comfort

With its variable speed compressor, the MXZ-8C48NAHZ2 can provide more precise adjustments to the covered spaces with the right air handlers. This also slightly improves electrical efficiency by ramping the compressor up and down based on the unit’s air handlers’ needs, as well as providing a more stable temperature output from the connected air handlers to provide superior comfort.

Intelligent Control

For ease of control, many air handlers that are compatible with the MXZ-8C48NAHZ2 can use any Mitsubishi-brand thermostat or adapter. The most convenient to control—the Kumo cloud WiFi adapter, found here—allows each air handler to be accessed from anywhere that you have Internet. Please note that in most applications, you will need one thermostat or adapter per indoor air handler that you want to be able to control with it.

9,000 BTU Ceiling Cassette Mitsubishi Mini-Split Multi Zone KP Series - Air Handler

OVERVIEW

With its enhanced operation features, the Mitsubishi MLZ-KP09NA ceiling cassette air handler provides superior heating and cooling to your room when paired with a compatible condenser, living up to Mitsubishi’s industry-leading comfort standards.

QUICK FACTS

  • Designed to be able to heat and cool a small room (in an average climate)
  • 9,000 BTU
  • Quiet operation
  • Dry mode setting
9,000 BTU, 17-20 SEER

At 9,000 BTU BTU, the Mitsubishi MLZ-KP09NA air handler is suitable for up to a small room in ideal climates. Please note that in order for this air handler to function, a compatible condenser is required.

Installation and Maintenance

The MLZ-KP09NA air handler has a small form factor, allowing it to fit between standard 16” joists, and with a depth of only 7-1/2”, accommodating your needs for almost any room. As a ceiling cassette, the unit can be installed in locations where wall or floor mounted units are not practical or desired. Please note that for all installations, a ceiling cassette grill is required, available at an additional cost.

Intelligent Comfort

The Mitsubishi MLZ-KP09NA brings quiet operation to enhanced comfort. With its multiple operating modes and multiple fan speeds, the MLZ-KP09NA air handler will heat and cool your room with ease and adjust the temperature more precisely to keep you comfortable.

Compatible Condensers

  • Single Zone: SUZ-KA09NA2, SUZ-KA09NAHZ
  • Multi Zone: MXZ-2C20NA2, MXZ-3C24NA2, MXZ-3C30NA2, MXZ-4C36NA2, MXZ-5C42NA2, MXZ-8C48NA, MXZ-8C60NA, MXZ-2C20NAHZ2, MXZ-3C24NAHZ2, MXZ-3C30NAHZ2, MXZ-4C36NAHZ, MXZ-5C42NAHZ, MXZ-8C48NAHZ

9,000 BTU Ceiling Cassette Mitsubishi Mini-Split Multi Zone KP Series - Air Handler

OVERVIEW

With its enhanced operation features, the Mitsubishi MLZ-KP09NA ceiling cassette air handler provides superior heating and cooling to your room when paired with a compatible condenser, living up to Mitsubishi’s industry-leading comfort standards.

QUICK FACTS

  • Designed to be able to heat and cool a small room (in an average climate)
  • 9,000 BTU
  • Quiet operation
  • Dry mode setting
9,000 BTU, 17-20 SEER

At 9,000 BTU BTU, the Mitsubishi MLZ-KP09NA air handler is suitable for up to a small room in ideal climates. Please note that in order for this air handler to function, a compatible condenser is required.

Installation and Maintenance

The MLZ-KP09NA air handler has a small form factor, allowing it to fit between standard 16” joists, and with a depth of only 7-1/2”, accommodating your needs for almost any room. As a ceiling cassette, the unit can be installed in locations where wall or floor mounted units are not practical or desired. Please note that for all installations, a ceiling cassette grill is required, available at an additional cost.

Intelligent Comfort

The Mitsubishi MLZ-KP09NA brings quiet operation to enhanced comfort. With its multiple operating modes and multiple fan speeds, the MLZ-KP09NA air handler will heat and cool your room with ease and adjust the temperature more precisely to keep you comfortable.

Compatible Condensers

  • Single Zone: SUZ-KA09NA2, SUZ-KA09NAHZ
  • Multi Zone: MXZ-2C20NA2, MXZ-3C24NA2, MXZ-3C30NA2, MXZ-4C36NA2, MXZ-5C42NA2, MXZ-8C48NA, MXZ-8C60NA, MXZ-2C20NAHZ2, MXZ-3C24NAHZ2, MXZ-3C30NAHZ2, MXZ-4C36NAHZ, MXZ-5C42NAHZ, MXZ-8C48NAHZ

12,000 BTU Ceiling Cassette Mitsubishi Mini-Split Multi Zone KP Series - Air Handler

OVERVIEW

With its enhanced operation features, the Mitsubishi MLZ-KP12NA ceiling cassette air handler provides superior heating and cooling to your room when paired with a compatible condenser, living up to Mitsubishi’s industry-leading comfort standards.

QUICK FACTS

  • Designed to be able to heat and cool a medium room (in an average climate)
  • 12,000 BTU
  • Quiet operation
  • Dry mode setting
12,000 BTU, 17-20 SEER

At 12,000 BTU BTU, the Mitsubishi MLZ-KP12NA air handler is suitable for up to a small room in ideal climates. Please note that in order for this air handler to function, a compatible condenser is required.

Installation and Maintenance

The MLZ-KP12NA air handler has a small form factor, allowing it to fit between standard 16” joists, and with a depth of only 7-1/2”, accommodating your needs for almost any room. As a ceiling cassette, the unit can be installed in locations where wall or floor mounted units are not practical or desired. Please note that for all installations, a ceiling cassette grill is required, available at an additional cost.

Intelligent Comfort

The Mitsubishi MLZ-KP12NA brings quiet operation to enhanced comfort. With its multiple operating modes and multiple fan speeds, the MLZ-KP12NA air handler will heat and cool your room with ease and adjust the temperature more precisely to keep you comfortable.

Compatible Condensers

  • Single Zone: SUZ-KA12NA2, SUZ-KA12NAHZ
  • Multi Zone: MXZ-2C20NA2, MXZ-3C24NA2, MXZ-3C30NA2, MXZ-4C36NA2, MXZ-5C42NA2, MXZ-8C48NA, MXZ-8C60NA, MXZ-2C20NAHZ2, MXZ-3C24NAHZ2, MXZ-3C30NAHZ2, MXZ-4C36NAHZ, MXZ-5C42NAHZ, MXZ-8C48NAHZ

12,000 BTU Ceiling Cassette Mitsubishi Mini-Split Multi Zone KP Series - Air Handler

OVERVIEW

With its enhanced operation features, the Mitsubishi MLZ-KP12NA ceiling cassette air handler provides superior heating and cooling to your room when paired with a compatible condenser, living up to Mitsubishi’s industry-leading comfort standards.

QUICK FACTS

  • Designed to be able to heat and cool a medium room (in an average climate)
  • 12,000 BTU
  • Quiet operation
  • Dry mode setting
12,000 BTU, 17-20 SEER

At 12,000 BTU BTU, the Mitsubishi MLZ-KP12NA air handler is suitable for up to a small room in ideal climates. Please note that in order for this air handler to function, a compatible condenser is required.

Installation and Maintenance

The MLZ-KP12NA air handler has a small form factor, allowing it to fit between standard 16” joists, and with a depth of only 7-1/2”, accommodating your needs for almost any room. As a ceiling cassette, the unit can be installed in locations where wall or floor mounted units are not practical or desired. Please note that for all installations, a ceiling cassette grill is required, available at an additional cost.

Intelligent Comfort

The Mitsubishi MLZ-KP12NA brings quiet operation to enhanced comfort. With its multiple operating modes and multiple fan speeds, the MLZ-KP12NA air handler will heat and cool your room with ease and adjust the temperature more precisely to keep you comfortable.

Compatible Condensers

  • Single Zone: SUZ-KA12NA2, SUZ-KA12NAHZ
  • Multi Zone: MXZ-2C20NA2, MXZ-3C24NA2, MXZ-3C30NA2, MXZ-4C36NA2, MXZ-5C42NA2, MXZ-8C48NA, MXZ-8C60NA, MXZ-2C20NAHZ2, MXZ-3C24NAHZ2, MXZ-3C30NAHZ2, MXZ-4C36NAHZ, MXZ-5C42NAHZ, MXZ-8C48NAHZ

18,000 BTU Ceiling Cassette Mitsubishi Mini-Split Multi Zone KP Series - Air Handler

OVERVIEW

With its enhanced operation features, the Mitsubishi MLZ-KP18NA ceiling cassette air handler provides superior heating and cooling to your room when paired with a compatible condenser, living up to Mitsubishi’s industry-leading comfort standards.

QUICK FACTS

  • Designed to be able to heat and cool a medium room (in an average climate)
  • 18,000 BTU
  • Quiet operation
  • Dry mode setting
18,000 BTU, 17-20 SEER

At 18,000 BTU BTU, the Mitsubishi MLZ-KP18NA air handler is suitable for up to a small room in ideal climates. Please note that in order for this air handler to function, a compatible condenser is required.

Installation and Maintenance

The MLZ-KP18NA air handler has a small form factor, allowing it to fit between standard 16” joists, and with a depth of only 7-1/2”, accommodating your needs for almost any room. As a ceiling cassette, the unit can be installed in locations where wall or floor mounted units are not practical or desired. Please note that for all installations, a ceiling cassette grill is required, available at an additional cost.

Intelligent Comfort

The Mitsubishi MLZ-KP18NA brings quiet operation to enhanced comfort. With its multiple operating modes and multiple fan speeds, the MLZ-KP18NA air handler will heat and cool your room with ease and adjust the temperature more precisely to keep you comfortable.

Compatible Condensers

  • Single Zone: SUZ-KA18NA2, SUZ-KA18NAHZ
  • Multi Zone: MXZ-3C24NA2, MXZ-3C30NA2, MXZ-4C36NA2, MXZ-5C42NA2, MXZ-8C48NA, MXZ-8C60NA, MXZ-3C24NAHZ2, MXZ-3C30NAHZ2, MXZ-4C36NAHZ, MXZ-5C42NAHZ, MXZ-8C48NAHZ

Mitsubishi MLP-444W Grill for MLZ-KP Cassettes

The Mitsubishi MLP-444W is one of the grill options required to complete a KP cassette installation.

Features:

  • Allows for direct service of unit from below.
  • Overlaps a 1.5' x 4' area to hide the ceiling cassette body in a drop ceiling or recessed between 16" on center joists.

Compatible Indoor Units:

Ceiling Cassette

  • KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA

Specifications

48,000 BTU 18.9 SEER Mitsubishi Multi-Zone Ductless H2i Hyper Heat Pump Condenser w/ Base Pan Heater

skuMXZ-8C48NAHZ2
manufacturerMitsubishi
cooling_btu48,000
heating_btu54,000
refrigerantR410A
seer18
liquid_line3/8"
suction_line5/8"
electrical208 / 230 V. 1 Phase 60 Hz
max_breaker_size40 amps
nominal_capacity4 Ton
height52 11/16"
width41 11/32"
depth14"
weight276.0000
warrantyLimited warranty: five years parts and seven years compressors
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING


9,000 BTU Ceiling Cassette Mitsubishi Mini-Split Multi Zone KP Series - Air Handler

skuMLZ-KP09NA
manufacturerMitsubishi
controllerWireless Included
features_1Drain: 1"
cooling_btu9,000 BTU
heating_btu12,000 BTU
cfm212-325 CFM
decibel26-38
refrigerantR410A
capacityDehumidification Rate: 0.19 gal/hr
liquid_line1/4"
suction_line3/8"
electrical208/230V 1 Phase 60 Hz
electric_phaseSingle Phase
nominal_capacity0.75 Ton
mini_split_typeCeiling Cassette
zone_compatibilityMulti Zone
operating_modeCooling, Heating
heightIndoor Unit: 7-5/16" | Grille: 1-7/16"
widthIndoor Unit: 43-3/8" | Grille: 47-1/4"
depthIndoor Unit: 14-3/16" | Grille: 16-11/16"
weight34.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING


12,000 BTU Ceiling Cassette Mitsubishi Mini-Split Multi Zone KP Series - Air Handler

skuMLZ-KP12NA
manufacturerMitsubishi
controllerWireless Included
features_1Drain: 1"
cooling_btu12,000 BTU
heating_btu15,000 BTU
cfm212-350 CFM
decibel26-40
refrigerantR410A
capacityDehumidification Rate: 0.35 gal/hr
liquid_line1/4"
suction_line3/8"
electrical208/230V 1 Phase 60 Hz
electric_phaseSingle Phase
nominal_capacity1.0 Ton
mini_split_typeCeiling Cassette
zone_compatibilityMulti Zone
operating_modeCooling, Heating
heightIndoor Unit: 7-5/16" | Grille: 1-7/16"
widthIndoor Unit: 43-3/8" | Grille: 47-1/4"
depthIndoor Unit: 14-3/16" | Grille: 16-11/16"
weight34.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING


18,000 BTU Ceiling Cassette Mitsubishi Mini-Split Multi Zone KP Series - Air Handler

skuMLZ-KP18NA
manufacturerMitsubishi
controllerWireless Included
features_1Drain: 1"
cooling_btu18,000 BTU
heating_btu21,000 BTU
cfm212-417 CFM
decibel26-48
refrigerantR410A
capacityDehumidification Rate: 0.66 gal/hr
liquid_line1/4"
suction_line1/2"
electrical208/230V 1 Phase 60 Hz
electric_phaseSingle Phase
nominal_capacity1.5 Ton
mini_split_typeCeiling Cassette
zone_compatibilityMulti Zone
operating_modeCooling, Heating
heightIndoor Unit: 7-5/16" | Grille: 1-7/16"
widthIndoor Unit: 43-3/8" | Grille: 47-1/4"
depthIndoor Unit: 14-3/16" | Grille: 16-11/16"
weight34.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING


Mitsubishi MLP-444W Grill for MLZ-KP Cassettes

skuMLP-444W
manufacturerMitsubishi
electrical12v, supplied from indoor unit
length47-1/4"
height1-7/16"
width16-11/16"
weight8.0000
safety_informationPROPOSITION 65 WARNING
