Regular Price:
$3,573.00
Special Price
$0.00
Details

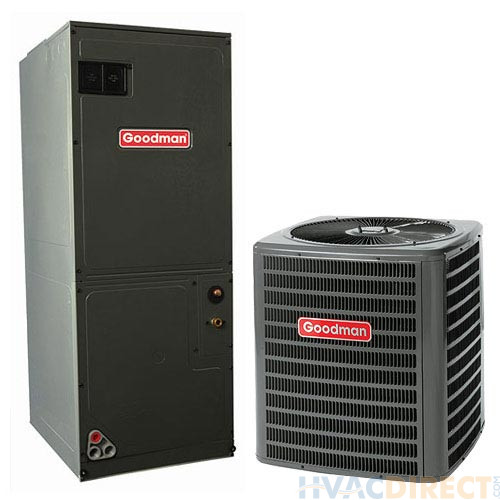

Goodman 2.5 Ton 14 SEER Heat Pump
OVERVIEW
The Goodman GSZ140301 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of Goodman’s equipment, the GSZ140301 is manufactured with high-quality materials to provide a superior comfort in your home.
QUICK FACTS
- Ideal size to cover a medium-sized house in ideal climates
- 2.5 ton, 14 SEER heat pump condenser
- Low sound output
- Fully charged for up to 15’ of line set
- Factory-installed bi-flow filter drier
2.5 ton
The Goodman GSZ140301 heat pump has a capacity of 2.5 tons. In an ideal climate, this tonnage will normally cover up to a medium-sized house. In some bundles, the air handler or coil associated with this condenser may be intentionally larger in tonnage to maintain the unit’s overall efficiency. Please note that an indoor air handler or coil that is compatible with heat pumps is required for this unit to function.
14 SEER
At 14 SEER, the GSZ140301 heat pump condenser has the industry-standard minimum, allowing the unit to remain inexpensive upfront in comparison to higher SEER ratings. If you are replacing an existing heat pump, in most cases this SEER rating will still be higher than your old unit, allowing it to still save you money over time in energy bills.
The GSZ140301 condenser comes with Goodman’s standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
The Goodman GSZ140301 heat pump condenser is manufactured with a durable cabinet with paint that is approved for 500 hours of salt spray, making it compliant with the 2010 Florida building code unit integrity requirements for hurricane-like weather when properly anchored to your local codes. The built-in bi-flow liquids line filter drier protects the unit from impurities in the refrigerant and other general wear and tear, increasing the reliability of the unit.
The Goodman GSZ140301 has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. There are factory-installed features such as a filter drier, compressor crankcase heater, pressure switches, and a high-capacity muffler so your installer doesn’t have to, further providing ease to the installation process. Moreover, the cabinet of the unit is fit with two maintenance access panels: one on the top and one on the side. All of these features lower your installation and maintenance costs, keeping more money in your pocket to spend on the things you care about most.
With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the GSZ140301 heat pump has some of the lowest sound outputs on a single stage unit on the market today.
2.5 Ton Multi-Positional Goodman Air Handler
OVERVIEW
Designed with an enhanced comfort in mind, the ARUF31B14 air handler lives up to Goodman’s expectations to be efficient and inexpensive, ready to heat and cool your home when paired with a condenser whenever you need it.
QUICK FACTS
- 2.5 ton air handler
- Electric heat compatible
- Efficient multi-speed blower
- Multi-positional (upflow, downflow, or horizontal)
2.5 Tons
The Goodman ARUF31B14 air handler is rated for up to 2.5 tons. In some packages, the air handler will be slightly larger in tonnage than the condenser in the package. This is intentional, as it maintains the overall efficiency of the entire system. From the factory, the unit does need an outdoor unit to function as an AC or heat pump air handler, however it can use an electric heat kit and acts as a straight electric heating unit when the kit field installed.
Warranty
The ARUF31B14 comes with Goodman’s standard 10 year parts warranty when registered online through the manufacturer. Please note that in order for the warranty to be upheld, the installation must be compliant to all related local and state codes, as well as the unit must be paired with an approved condenser.
The ARUF31B14 air handler is factory-sealed, making it compliant out of the box with 2001 Florida Building Code compliant and decreasing air leakage, increasing efficiency and saving the air to heat or cool your home and providing a peace of mind that the reliability of the unit will heat or cool your home whenever you need it to. Moreover, the ARUF31B14 has a sub-structure that increases overall unit stability, and its cabinet is durable in construction to protect your new investment.
The Goodman ARUF31B14 air handler contains both a coil and a blower motor in its cabinet. This one-piece design generally makes installations simpler, keeping more money in your pocket since it lowers installation costs. For accessory add-ons, there are multiple knockouts for easy installation, like a single-bulb UV light port. Moreover, the SmartFrame sub-structure provides enhanced stability and easier installation with its special mounting configurations, and the cabinet is designed to be able to function in the upflow, downflow, or horizontal configurations with ease. For easier maintenance, the air handler also has side and top access panels.
The Goodman ARUF31B14 air handler is built with a direct-drive, multi-speed blower motor, providing a more steady temperature in your home, making you more comfortable and lowering operating costs.
5 Kilowatt 16,200 BTU Goodman Heater Coil
The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
Compatible With
- Goodman ARPT Air Handlers
- Goodman ARUF Air Handlers
- Goodman ASPT Air Handlers
- Goodman ASUF Air Handlers
- Goodman AVPTC Air Handlers
8 Kilowatt 23,800 BTU Goodman Heater Coil
The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
Compatible With
- Goodman ARPT Air Handlers
- Goodman ARUF Air Handlers
- Goodman ASPT Air Handlers
- Goodman ASUF Air Handlers
- Goodman AVPTC Air Handlers
10 Kilowatt 34,100 BTU Goodman Heater Coil
The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
Compatible With
- Goodman ARPT Air Handlers
- Goodman ARUF Air Handlers
- Goodman ASPT Air Handlers
- Goodman ASUF Air Handlers
- Goodman AVPTC Air Handlers
15 Kilowatt 51,150 BTU Goodman Heater Coil
This 240 volt heater coil can be added to a Goodman air handler to provide winter-time heating capabilities.
Produces 51,150 BTUs of heat.
Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into air handlers. Rust-resistant nickel chromium heat elements.
If you are installing a heater coil in an air handler, line voltage is to be connected directly to the heater coil which will operate both the heater coil and air handler. A separate circuit for the air handler is not needed.
Depending on the heater coil size being installed, one or two circuits to the heater coil will be necessary (see "PRODUCT SPECIFICATIONS" below for quantity and amperage of circuits required for this heater coil.) At your home's circuit panel, individual 220 volt double-pole circuit breakers are required for each circuit.
Compatible With
- Goodman ARPT Air Handlers - 30,000+ BTU
- Goodman ARUF Air Handlers - 30,000+ BTU
- Goodman ASPT Air Handlers - 36,000+ BTU
- Goodman ASUF Air Handlers - 42,000+ BTU
- Goodman AVPTC Air Handlers - 36,000+ BTU
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Linesets are available in different lengths and diameters to fit most applications.
Goodman 2.5 Ton 14 SEER Heat Pump
sku | GSZ140301 |
---|---|
manufacturer | Goodman |
cooling_btu | 30,000 |
heating_btu | 30,000 |
decibel | 74 |
energy_star | Yes |
refrigerant | R410A |
seer | 14 |
compressor_stage | Single Stage |
compressor_type | Scroll |
liquid_valve_size | 3/8" |
suction_valve_size | 3/4" |
electrical | 208 / 230 V. 1 Phase 60 Hz |
max_breaker_size | 30 amps |
min_breaker_size | 18.7 amps |
nominal_capacity | 2.5 Ton |
valve_type | Sweat |
height | 38.25" |
width | 29" |
depth | 29" |
weight | 198.0000 |
warranty | 10 Years with Online Registration |
resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
safety_information | PROPOSITION 65 WARNING |
2.5 Ton Multi-Positional Goodman Air Handler
sku | ARUF31B14 |
---|---|
manufacturer | Goodman |
controller | Not Included |
included_items | Check flowrator (Piston) for cooling and heat pump applications - Piston #0.065 |
features_1 | All-aluminum evaporator coil |
cooling_btu | 30,000 |
blower_motor | Multi Speed - PSC |
drive_type | Direct |
cfm | 1235 |
horsepower | 1/3 |
electric_heat_cap | Electric Heat Strip |
electric_options | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts |
configuration | Multi-Position |
refrigerant | R410A |
filter_size | 16" x 20" |
liquid_line | 3/8" |
suction_line | 7/8" |
electrical | 208/240 V, 1 Phase, 60 Hz |
max_breaker_size | 15 Amps |
min_breaker_size | 15 Amps |
nominal_capacity | 2.5 Ton |
fuel_type | Electric |
height | 53 7/16" |
width | 17.5" |
depth | 21" |
weight | 110.0000 |
warranty | 10 Years with Online Registration |
resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
safety_information | PROPOSITION 65 WARNING |
5 Kilowatt 16,200 BTU Goodman Heater Coil
sku | HKSC05XC |
---|---|
manufacturer | Goodman |
heating_btu | 16,200 |
electric_heat_cap | 5 Kilowatts |
electrical | 208 / 230 / 240 Volts / 1 Phase |
electric_phase | Single Phase |
max_breaker_size | 35 amps |
min_breaker_size | 32 amps |
weight | 8.0000 |
warranty | 10 Years with Online Registration |
resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
safety_information | PROPOSITION 65 WARNING |
8 Kilowatt 23,800 BTU Goodman Heater Coil
sku | HKSC08XC |
---|---|
manufacturer | Goodman |
heating_btu | 23,800 |
electric_heat_cap | 8 Kilowatts |
electrical | 208 / 230 / 240 Volts / 1 Phase |
electric_phase | Single Phase |
max_breaker_size | 50 amps |
min_breaker_size | 48 amps |
weight | 9.0000 |
warranty | 10 Years with Online Registration |
resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
safety_information | PROPOSITION 65 WARNING |
10 Kilowatt 34,100 BTU Goodman Heater Coil
sku | HKSC10XC |
---|---|
manufacturer | Goodman |
heating_btu | 34,100 |
electric_heat_cap | 10 Kilowatts |
electrical | 208 / 230 / 240 Volts / 1 Phase |
electric_phase | Single Phase |
max_breaker_size | 60 amps |
min_breaker_size | 57 amps |
weight | 9.0000 |
warranty | 10 Years with Online Registration |
resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
safety_information | PROPOSITION 65 WARNING |
15 Kilowatt 51,150 BTU Goodman Heater Coil
sku | HKSC15XB |
---|---|
manufacturer | Goodman |
heating_btu | 51,150 |
electric_heat_cap | 15 Kilowatts |
electrical | 208 / 230 / 240 Volts / 1 Phase |
electric_phase | Single Phase |
max_breaker_size | Circuit 1: 60 amps / Circuit 2: 25 amps |
min_breaker_size | Circuit 1: 57 amps / Circuit 2: 25 amps |
weight | 9.0000 |
warranty | 10 Years with Online Registration |
resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
safety_information | PROPOSITION 65 WARNING |
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
sku | LS38343830 |
---|---|
manufacturer | Online Supply |
liquid_line | 3/8" |
suction_line | 3/4" |
suction_line_insulation | 3/4" |
length | 30 feet |
weight | 35.0000 |
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
sku | LS38343850 |
---|---|
manufacturer | Online Supply |
liquid_line | 3/8" |
suction_line | 3/4" |
suction_line_insulation | 3/4" |
length | 50 feet |
weight | 22.0000 |
safety_information | PROPOSITION 65 WARNING |
Reviews
- No complaints
-
Unit has worked great for the last few months. Can’t wait to see how it performs in the winter when I switch it over to heat mode.
Quality Price Service
Write Your Own Review
Sort By:
January 29, 2020Richard G Kelley asked:
does this unit come with a coil?
Answer
Yes the coil is already in the bottom of the air handler - Thanks
