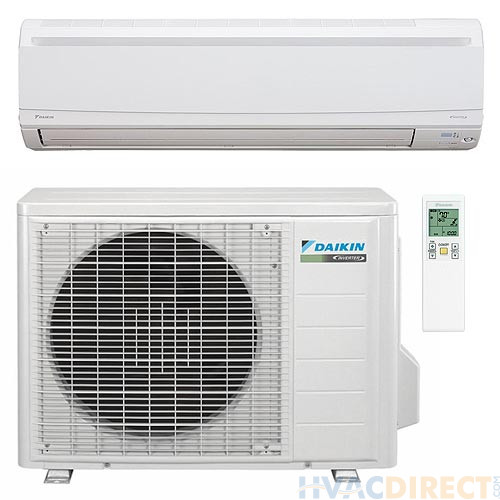

The Daikin LV Series wall mounted unit provides high efficiency and comfort. This discreet wall unit won't take up floor space and is ideal for installation in buildings where ducted solutions are not possible. It features smart technology such as the intelligent eye sensor, which adjusts temperature conditions depending on if the room is occupied. It comes with a standard remote controller and is also compatible with the Daikin Comfort Control App to make running even easier. The unit provides up to 24.5 SEER and features a variable-speed inverter compressor for energy efficiency. Whether you are renovating a building or simply looking to improve the energy efficiency of your current unit, the Daikin LV wall mount is an idea solution for your home comfort needs.
Features- Heat Pump – This system provides heating and cooling.
- Daikin Comfort App – With this app, your smartphone becomes your comfort system's remote control.
- 3D Airflow – This feature combines the horizontal and vertical auto-swing, circulating cool or warm air throughout the room, even to corners of large spaces.
- Intelligent Eye – An infrared sensor detects movement in the room. When the room is occupied, the unit will operate normally. If the room is vacant for more than 20 minutes, the unit automatically switches to an energy-saving mode.
- Anti-Corrosion – A special coating on the outdoor unit's heat exchanger helps the unit resist salt damage and corrosion from other atmospheric conditions.
- Quick Warming Function – In heat pump only models, this feature prevents the compressor from pumping liquid refrigerant in low temperature conditions.
- Automatic Defrosting – In heat pump models, the sensor will automatically defrost the outdoor heat exchanger if necessary. Doing so ensures the best heating performance.
- Outdoor Unit Quiet Operation – This feature allows you to reduce the outdoor unit's sound levels by 3 dB at times when quieter operation is needed.
Additional Information
| SKU | FTXS09LVJU / RXS09LVJU |
|---|---|
| Manufacturer | Daikin |
| AHRI Certificate Number | 5265753 |
| Additional Information | Heat Pump |
| Additional Information | Precharged for: 33' |
| Additional Information | Maximum Line Set Length: 66' |
| Additional Information | Drain: 5/8" |
| Additional Information | Indoor Unit Weight: 31 lbs | Outdoor Unit Weight: 99 lbs |
| HSPF | 12.5 |
| Cooling BTU | 9,000 |
| Heating BTU | 12,000 |
| Maximum CFM | 145-420 CFM |
| Decibel Level (dBA) | Indoor Unit: 22-42 | Outdoor Unit: 47-48 |
| Energy Star | Yes |
| Refrigerant | R410A |
| SEER | 25 |
| EER | 15.3 |
| Compressor Type | Swing |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 15 amps |
| Min. Breaker Size | 8 amps |
| Tonnage | 0.75 Ton |
| System Tonnage | 1 Ton |
| Mini-Split Type | Wall Mounted |
| Min/Max Outdoor Temp for Heating | 5°F - 65°F |
| Min/Max Outdoor Temp for Cooling | 50°F - 115°F |
| Zone Compatibility | Single Zone |
| Height | Indoor Unit: 11-5/8" | Outdoor Unit: 21-5/8" |
| Width | Indoor Unit: 31-1/2" | Outdoor Unit: 30-1/8" |
| Depth | Indoor Unit: 8-7/16" | Outdoor Unit: 11-1/4" |
| Weight (in lbs) | 130.0000 |
| Additional Info | Indoor Unit Weight: 31 lbs | Outdoor Unit Weight: 99 lbs |
| Warranty | 12 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
