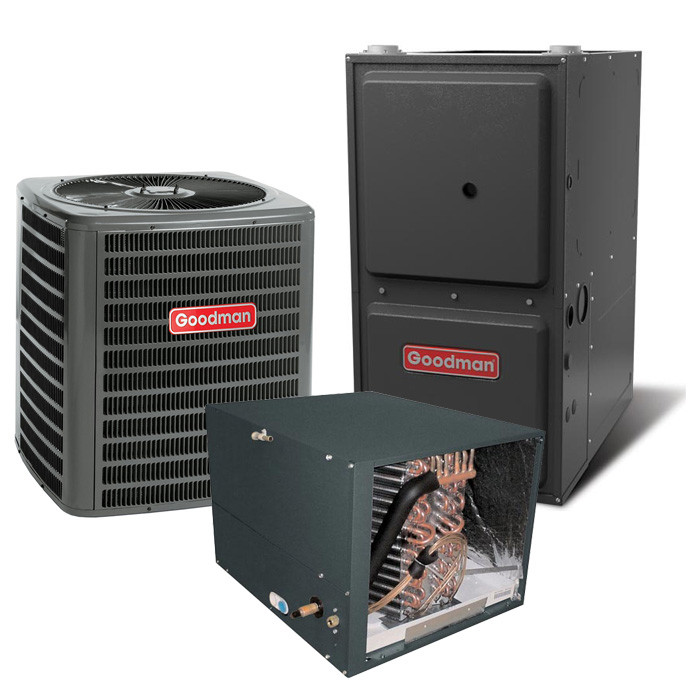

4 Ton 17 SEER 96% AFUE 120,000 BTU Goodman Gas Furnace and Heat Pump System - Horizontal
Model: GSZC180481 / CHPF4860D6 / GCVC961205DN / TX5N4

Regular Price: $7,439.95

Special Price $6,696.95

4 Ton 17 SEER 96% AFUE 120,000 BTU Goodman Gas Furnace and Heat Pump System - Horizontal

By: Goodman Model: GSZC180481 / CHPF4860D6 / GCVC961205DN / TX5N4 ID: 18041

More Views

Regular Price: $7,439.95

Special Price $6,696.95

Bread Checkout

FREE SHIPPING
Goodman Manufacturing
Ships in 8-10 Weeks
AHRI Certified
201894226

New
Requires: Plastic / PVC Flue Vent Piping

* Required Fields

Regular Price: $7,439.95

Special Price $6,696.95

Accessories

Description

Details

120,000 BTU 96% AFUE Downflow Variable Speed Goodman Gas Furnace

OVERVIEW

With top of the line technology at high efficiency, two stage burner, and variable speed blower motor, the GCVC961205DN is another high-end gas furnace manufactured by Goodman. With enhanced durability and reliability, you can expect this Goodman gas furnace to perform well throughout its life to provide consistent comfort and lower the overall cost of bills to keep money in your pocket for many years to come.

QUICK FACTS

  • This furnace is ideal to heat a larger house (in average climate conditions)
  • 120,000 BTU 96% AFUE two stage variable speed natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be used in the downflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output
120,000 BTU

The GCVC961205DN Goodman gas furnace has an input of 120,000 BTU’s. The output of the unit is 115,200 BTU’s (input X efficiency = output). This size of furnace is normally suitable for most larger houses in an ideal climate.

96% AFUE

With one of the highest efficiency ratings available, the GCVC961205DN gas furnace is 96% efficient. At this efficiency, the GCVC961205DN uses only 4% of its gas to operate the furnace itself and 96% of the gas going into the furnace to make your home warm and comfortable. With all gas furnaces at 90% efficiency and above like this one, the flue venting must be plastic or PVC.

Two Stage Variable Speed Furnace

Allowing for a more precise air flow output to best suit your home’s needs, the motor on the GCVC961205DN is a variable speed ECM blower motor, the best blower motor that Goodman offers to date. The two stage burner on the furnace allows for a lower output and a higher output for a more precise heat output as needed by your thermostat. Both of these high-end features allow for a small increase in efficiency, but the primary benefits are enhanced comfort and a more stable temperature throughout any season of the furnace’s use.

Warranty

The GCVC961205DN comes standard with Goodman’s 10 year parts warranty and its exceptional lifetime heat exchanger warranty. In order to maintain this warranty, the installation must follow your state and local codes and the unit must be registered online via Goodman’s website.

Durability and Reliability

The heavy-duty heat exchanger on the Goodman GCVC961205DN gas furnace is designed for constant use to provide enhanced reliability. The aluminized steel structure of this heat exchanger allows for a faster and more efficient heat transfer rate. Moreover, the outer casing on the unit is a heavier gauge of steel, protecting the internals of the furnace and lowering air leakage and furnace operation noise. All of these features enhance comfort and provide durability and reliability for the lifetime of the unit.

Installation

The GCVC961205DN furnace runs on natural gas from the factory. When you field-install the optional LP conversion kit (found here at an additional cost), this furnace can use propane instead when the installation requires it. This Goodman furnace is also able to be installed in the downflow or horizontal positions, allowing for a more versatile application potential.

4 Ton 18 SEER Two-Stage Goodman Heat Pump

OVERVIEW

Considered part of the highest-quality series offered by Goodman, the GSZC180481 heat pump condenser is a superior to any other series made by Goodman. With all of its features, the GSZC180481 continues to promote Goodman’s goals to provide enhanced comfort at a high efficiency while staying under budget.

QUICK FACTS

  • Designed to cover a larger house in average climates
  • 4 ton, 18 SEER heat pump condenser
  • Two stage compressor
  • Low sound output
  • Fully charged for up to 15’ of line set
  • Factory-installed bi-flow filter drier
4 ton

At 4 tons, the GSZC180481 heat pump by Goodman is suitable for a larger house in average climate conditions. Please note that for this unit to function, a compatible air handler or coil is required. Sometimes, the air handler or coil that is paired in a system bundle will be larger than the heat pump condenser in tonnage to maintain the unit’s overall efficiency.

18 SEER

At 18 SEER, the GSZC180481 condenser is manufactured to be the highest possible efficiency made by Goodman today. The GSZC180481 can save you around 25% in energy bills in comparison to a 14 SEER standard efficiency system, saving you a significant amount of money over time to spend on the things you care about most instead of on your energy bills.

Two Stage Compressor, Designed with Comfort in Mind

The Goodman GSZC180481 heat pump is built with a two stage compressor, allowing for a more stable temperature output. With its built-in compressor muffler, noise blanket, and superior cabinet insulation, the noise output is decreased to make it almost whisper-quiet, along with the two stage compressor that decreases operation noise output when on the lower stage.

Warranty

The GSZC180481 heat pump condenser comes standard with a 10 year parts warranty. To provide a peace of mind on its two stage compressor, Goodman also offers a lifetime heat exchanger warranty when paired with a new air handler or coil. All of these warranties require an installation that follows your state and local codes and the unit must be registered online through the manufacturer.

Durability and Reliability

With its durable structure designed for harsh conditions and its paint layer that makes it approved for up to 500 hours of salt spray, the Goodman GSZC180481 heat pump condenser is compliant with Florida 2010 integrity building codes when properly anchored. For enhanced reliability, the liquid line is fitted with a bi-flow filter drier, lowering general wear-and-tear by filtering out impurities and system contaminants. All of these features provide peace of mind to system owners, lowering the costs of equipment upkeep.

Installation and Maintenance

In order to provide a faster and less expensive installation, the Goodman GSZC180481 heat pump is factory-installed with pressure switches, a high-capacity muffler, easily accessible gauge ports, and service valves with sweat connections. The cabinet of the unit is also fitted with dual access panels—one on the side and one on the top—to allow for a much easier maintenance procedure should the need for maintenance arise.

4 to 5 Ton 24.5" Goodman Horizontal Evaporator Cased Coil

OVERVIEW

The Goodman CHPF4860D6 evaporator coil is designed for any installations that the coil needs to sit on its side, in the horizontal position. With its enhanced comfort and superior efficiency design, the CHPF4860D6 is an inexpensive yet quality choice for you.

QUICK FACTS

  • 4 to 5 ton evaporator coil
  • Installable in the horizontal configuration
  • Usable with either a heat pump or an AC-only condenser
  • Works with R410A or R22 refrigerant
  • Low air leakage
  • Check flowrater expansion device for use in any application
4 to 5 Tons

At an output of 4 to 5 tons, the Goodman CHPF4860D6 evaporator coil is ready for almost any horizontal installation at that size. In many situations, a condenser that is paired with the condenser is going to be smaller than this coil. This is intentional and is to maintain the overall unit’s efficiency.
Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPF4860D6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R410A condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPF4860D6 evaporator coil is designed with a durable outer casing and a rust-resistant drain pan to lower general wear and tear to make sure the coil works for years to come. To ease installation, the unit is designed to be slim and able to fit in many crawl spaces and attics, and with its foil-face insulation making the unit’s air leakage minimal, installation location does not necessarily have to be insulated for normal temperature operations. For maintenance, the coil has a split-seam on the front of it for easier access.

Goodman 3.5 to 5 Ton TXV Kit - R-410A

Goodman's TXV valves are designed to improve the reliability and efficiency of your central split system. With the TX5N4, you can be assured that your three-and-a-half to five ton system is getting the proper refrigerant flow, even through changing conditions. Since this valve is installed externally, it is easy to service and maintain. If you're looking to improve the efficiency and performance of your system, the TX5N4 is a good start.

Product Compatible With
  • Goodman GSX130421 Air Conditioners
  • Goodman GSX130481 Air Conditioners
  • Goodman GSX130601 Air Conditioners
  • Goodman GSX130611 Air Conditioners
  • Goodman DSXC160481 Air Conditioners
  • Goodman DSXC160601 Air Conditioners
  • Goodman DSXC160481 Air Conditioners
  • Goodman DSXC160601 Air Conditioners
  • Goodman GSZ130421 Heat Pumps
  • Goodman GSZ130481 Heat Pumps
  • Goodman GSZ130601 Heat Pumps
  • Goodman SSZ140421 Heat Pumps
  • Goodman SSZ140481 Heat Pumps
  • Goodman SSZ140601 Heat Pumps
  • Goodman SSZ160421 Heat Pumps
  • Goodman SSZ160481 Heat Pumps
  • Goodman SSZ160601 Heat Pumps
  • Goodman DSZC160481 Heat Pumps
  • Goodman DSZC160601 Heat Pumps
  • Goodman DSZC180481 Heat Pumps
  • Goodman DSZC180601 Heat Pumps
  • Goodman CAPF3642*6 Evaporator Coils
  • Goodman CAUF3642*6 Evaporator Coils
  • Goodman CHPF3642B6 Evaporator Coils
  • Goodman CSCF3642N6 Evaporator Coils

Specifications

120,000 BTU 96% AFUE Downflow Variable Speed Goodman Gas Furnace

skuGCVC961205DN
manufacturerGoodman
afue96%
heating_btu120,000
blower_motorVariable Speed - ECM
cfm2000
configurationDownflow/Horizontal
exhaust_pipePVC
flue_locationRight
flue_requirementPlastic / PVC
electrical115 V. 1 Phase 60 Hz
burner_stagesTwo
fuel_typeGas
height34.5"
width24.5"
depth28.75"
weight158.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING


4 Ton 18 SEER Two-Stage Goodman Heat Pump

skuGSZC180481
manufacturerGoodman
hspf9.5
cooling_btu49,500
heating_btu51,000
decibel75
energy_starYes
seer18
eer13
compressor_stageTwo Stage
compressor_typeScroll
liquid_line3/8"
suction_line1 1/8"
electrical208/230 V 1 Phase 60 Hz
max_breaker_size45
amperage_req28.3
nominal_capacity4 Ton
height40"
width35 1/2"
depth35 1/2"
weight316.0000
warranty10 Year Unit Replacement Limited Waaranty
resources You will need Adobe® Acrobat® Reader to view PDF documents.


4 to 5 Ton 24.5" Goodman Horizontal Evaporator Cased Coil

skuCHPF4860D6
manufacturerGoodman
configurationHorizontal
refrigerantR410A or R22
liquid_line3/8"
suction_line7/8"
nominal_capacity4 Ton to 5 Ton
styleA-Coil
height24.5"
width26"
depth21.125"
weight77.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING


Goodman 3.5 to 5 Ton TXV Kit - R-410A

skuTX5N4
manufacturerGoodman
refrigerantR410A
weight2.5000
safety_informationPROPOSITION 65 WARNING
