Price as configured: $1,005.00
Details
iO HVAC Controls zoning packages provide everything needed to help control heating and cooling systems in residential and commercial applications. With easy installation and use, airflow control has never been easier to handle.
The ZP3-HC-ESP is designed to fit a three zone, single stage heating and cooling system. It has a built in static pressure control, meaning you will no longer need a bypass damper when a 3-wire, 24V damper is used. 18-gauge wire is used for all equipment connections so there are no mix-ups and less to handle. With an operating temperature range of -40° to 150° and a humidity range of 5% to 90%, this zone panel is durable and can handle many different types of environments. The time delay is 3 minutes off between cooling calls, 3 minutes off on low limit, 20 minute time share, and purge on equals 1 minute.
The Z1 Series consists of control damper assemblies designed to solve over-heating and over-cool situations in your home. They work separately from the ducting equipment, only monitoring the airflow of the over-conditioned area.
Features

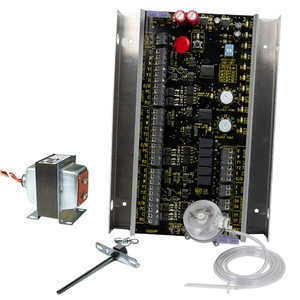

- Items Included: Panel, Static Pressure Sensor, Duct Temperature Sensor, 40va Transformer, Choice of Damper Assembly for Each Zone
- Short cycle protection
- Independent fan control by zone
- LED status indication
- Adjustable high and low balance point
- Pre-wired controls
- Stand-alone control of single room or multiple
- LED status indicator
- Minimum position adjustment
- Auto changeover
- 24VAC, 10VA, 2-wire power open/spring close
- 24-gauge steel spiral shell, aluminum shaft, nylon bushings, blade seals.
- Warranty: 10 Years for Zone Panel Kit, 5 Years for Dampers
6" Two-Position Zone One Damper Assembly
sku | D-Z1-06 |
---|---|
manufacturer | iO HVAC Controls |
height | 6" |
width | 6" |
depth | 8" |
weight | 3.9800 |
resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
safety_information | PROPOSITION 65 WARNING |
9" Two-Position Zone One Damper Assembly
sku | D-Z1-09 |
---|---|
manufacturer | iO HVAC Controls |
height | 9" |
width | 9" |
depth | 8" |
weight | 5.8600 |
warranty | 5 Year Warranty |
resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
safety_information | PROPOSITION 65 WARNING |
12" Two-Position Zone One Damper Assembly
sku | D-Z1-12 |
---|---|
manufacturer | iO HVAC Controls |
height | 12" |
width | 12" |
depth | 8" |
weight | 8.0800 |
warranty | 5 Year Warranty |
resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
safety_information | PROPOSITION 65 WARNING |
3-Zone Heat Pump (3H/2C) Zone Panel Kit
sku | ZP3-HPS-ESP-KIT |
---|---|
manufacturer | iO HVAC Controls |
temperature_control_range | -40° to 150° |
height | 14" |
width | 14" |
depth | 6" |
weight | 7.0000 |
warranty | 10 Year Warranty |
resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
safety_information | PROPOSITION 65 WARNING |
6" Two-Position Zone One Damper Assembly
sku | D-Z1-06 |
---|---|
manufacturer | iO HVAC Controls |
height | 6" |
width | 6" |
depth | 8" |
weight | 3.9800 |
resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
safety_information | PROPOSITION 65 WARNING |
9" Two-Position Zone One Damper Assembly
sku | D-Z1-09 |
---|---|
manufacturer | iO HVAC Controls |
height | 9" |
width | 9" |
depth | 8" |
weight | 5.8600 |
warranty | 5 Year Warranty |
resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
safety_information | PROPOSITION 65 WARNING |
12" Two-Position Zone One Damper Assembly
sku | D-Z1-12 |
---|---|
manufacturer | iO HVAC Controls |
height | 12" |
width | 12" |
depth | 8" |
weight | 8.0800 |
warranty | 5 Year Warranty |
resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
safety_information | PROPOSITION 65 WARNING |
