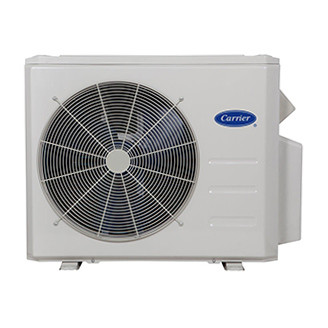

18,000 BTU 22.5 SEER Carrier Mini-Split 2 Zone Heat Pump Condenser
Model: 38MGRQ18B-3
Low Price: $1,919.00

18,000 BTU 22.5 SEER Carrier Mini-Split 2 Zone Heat Pump Condenser

By: Carrier Model: 38MGRQ18B-3 ID: 9797

More Views

Low Price: $1,919.00
Bread Checkout
Authorized Carrier Dealer
Ships in 7-10 Business Days
AHRI Certified
9118461 & 202345965 & 204722795






The Carrier 38MGRQ18B-3 multi zone mini split condenser unit can support comfort in a wide set of outdoor temperatures to suit many different application needs. With its high efficiency and ability to connect to up to 4 air handlers without a branch box, Carrier produces a unique line of mini split condensers that provides a superior quality system.


  • 18,000 BTU multi zone heat pump condenser
  • Quiet operation while balancing efficiency and comfort
  • Can support multiple air handlers without a branch box for ease of installation
  • Supports cooling down to -13°F and up to 122°F
  • Built-in drain pan heater, allowing the condenser to support heating down to -22°F
18,000 BTU

The Carrier 38MGRQ18B-3 multi zone heat pump condenser is rated for up to 18,000 BTU's of heating and cooling across up to 2 air handlers that are connected to the condenser. With an integrated base pan heater pre-installed from the factory, this condenser will provide superior comfort across all connected air handlers with heating all the way down to -22°F and cooling all the way down to -13°F, lower than many other brands.
Please note that in order to function, this heat pump condenser must be installed with at least two compatible air handlers, controllers, and other installation equipment, all available at an additional cost.


Carrier extends a 10 year parts warranty and a 10 year compressor warranty when the unit is installed following your state and local installation codes and when paired with compatible air handlers. Please note that online registration within 90 days of the installation is required for these warranties to be upheld, and that the unit is only under warranty for the original equipment owner as specified on the warranty certificate. When transferred or unregistered, the warranty will be a standard 5 year parts and compressor warranty from the time of purchase.

Sturdy Construction

The exterior of Carrier mini split condensers are designed with a heavy-gauge galvanized steel cabinet to protect the unit during everyday use. With its full-coverage baked-enamel white finish, the 38MGRQ18B-3 will be further protected while keeping its new white appearance throughout the unit's life.


Additional Information

Manufacturer Carrier
AHRI Certificate Number 9118461 & 202345965 & 204722795
HSPF 10.3
Cooling BTU 21,940 BTU
Heating BTU 24,480 BTU
Maximum CFM 1390 CFM
Energy Star Yes
Refrigerant R410A
Refrigerant Charge Pre-charged for: 49'
EER 12.5
Liquid Line 1/4" (2)
Suction Line 3/8" (2)
Electrical 208/230V 1 Phase 60Hz
Electric Phase Filter Single Phase
Max Breaker Size 25 Amps
Min. Breaker Size 18 Amps
Amperage Requirement 25 Amps
Tonnage 1.5 Ton
Min/Max Outdoor Temp for Heating -22°F-86°F
Min/Max Outdoor Temp for Cooling -13°F-122°F
Low Ambient Heating Yes
Zone Compatibility Multi Zone
Height 27-3/5"
Width 33-3/10"
Depth 13-1/5"
Warranty 10 years with online registration, 5 years without
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
