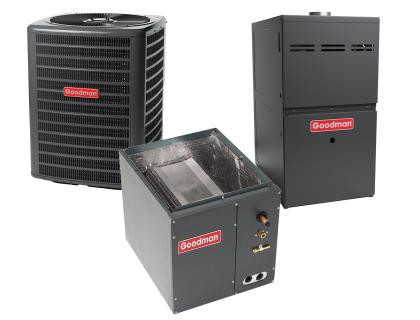

1.5 Ton 13 SEER 80% AFUE 40,000 BTU Goodman Gas Furnace and Air Conditioner System - Downflow
Model: GSX130181 / CAPF1824A6 / GCES800403AN

Regular Price: $2,146.00

Special Price $1,911.00

1.5 Ton 13 SEER 80% AFUE 40,000 BTU Goodman Gas Furnace and Air Conditioner System - Downflow

By: Goodman Model: GSX130181 / CAPF1824A6 / GCES800403AN ID: 30600

More Views

Regular Price: $2,146.00

Special Price $1,911.00

Bread Checkout

FREE SHIPPING
Goodman Manufacturing
Ships 4-6 Weeks - Check AirQuest Systems for Faster Ship Times
AHRI Certified
203379465

New
Requires: Metal Flue Vent Piping

* Required Fields

Regular Price: $2,146.00

Special Price $1,911.00

Accessories

Description

Details

Skip the Wait with a Free AirQuest by Carrier Upgrade!

Due to long Goodman lead times, we're upgrading systems for FREE to AirQuest by Carrier. No need to contact us, if you're system is eligible, we'll reach out to you with details on your FREE UPGRADE and much faster delivery!

A Goodman combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, the GCES800403AN is a perfect choice for heating.

Not intended for use in mobile homes.

40,000 BTU 80% AFUE Multi-Speed Single Stage Goodman Gas Furnace - Downflow/Horizontal

OVERVIEW

If you’re looking to reduce your energy bill and improve the comfort of your home, look no further than Goodman’s GCES800403AN. This gas furnace features efficient operation and high-quality construction to provide your home with reliable, affordable heating. The GCES800403AN single-stage, multi-speed furnace is a great value designed for many applications.

QUICK FACTS

  • This furnace is ideal to heat a smaller house (depending on climate)
  • 40,000 BTU 80% efficient natural gas furnace
  • Requires metal flue venting
  • Can be used in the downflow or horizontal orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output
40,000 BTU

The GCES800403AN Goodman gas furnace is suitable in output for a small house in ideal climate conditions. At 40,000 BTU’s, this furnace size is the smallest furnace that Goodman has to offer. The BTU count is the input per hour of the furnace, and the output is 32,000 BTU’s (40,000 x 80% AFUE) per hour.

80% Efficiency Rating

The GCES800403AN Goodman gas furnace has the basic efficiency rating in furnaces on the market today. At 80% efficient, the furnace loses only 20% of fuel going into it to normal furnace operation, and the remaining 80% is used to heat your house. All 80% furnaces such as this one require metal flue venting, and furnaces that are 90% efficient or higher require plastic/pvc flue venting.

Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. For the Low NOx equivalent of this furnace, click here. If you have any questions, please contact us.

Single Stage Furnace

A single stage furnace operates using the same amount of energy every time is turns on. The GCES800403AN Goodman gas furnace operates using only one heat output. This furnace will operate at 100% output whenever it is operating.

Natural Gas or LP Furnace

From the factory, the GCES800403AN runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace’s corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

Multi-Speed ECM Blower Motor

The GCES800403AN utilizes a multi-speed ECM motor, which is more efficient than older PSC blower motors, saving you money in electric bills.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

Instead of a standing pilot light, the GCES800403AN has a newer, more efficient hot surface igniter. Hot surface igniters are much more efficient and safer than standard standing pilot lights.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely runs into any operation-based problems. However, if the furnace does need maintenance or warranty work, the control board has a set of sensors that will identify any basic problems in the furnace’s basic operation.

Heavy Gauge Steel Cabinet

The GCES800403AN Goodman gas furnace has a durable outer cabinet. The heavy-gauge steel used in the furnace’s design allows for a more protected interior, and less air leakage from the furnace’s operation, resulting in a more quiet operation while still decreasing operation costs.

Ease of Installation

From enhanced operation to efficiency, the Goodman gas furnaces have a lot to offer. However, Goodman’s features don’t stop at quality of unit. The GCES800403AN allows for a significantly more streamlined installation process with its universal design, consisting of its ability to be installed in either downflow or horizontal configurations, lowering labor costs.

1.5 to 2 Ton 14" Width Goodman Vertical Evaporator Cased Coil

OVERVIEW

With the CAPF1824A6 evaporator coil, Goodman provides an enhanced comfort to your home. With its ability to work with AC-only systems or with heat pumps and its ability to be installed in both the upflow or downflow orientations, the CAPF1824A6 is designed to be versatile in design and to provide an efficient comfort at a low cost.

QUICK FACTS

  • 1.5 to 2 ton evaporator coil
  • Installable in the upflow or downflow configurations
  • Usable with either a heat pump or an AC-only condenser
  • Low air leakage
  • Check flowrater expansion device for use in any application
1.5 to 2 Tons

The Goodman CAPF1824A6 evaporator coil is rated for a 1.5 to 2 ton output. In many system configurations, this coil may be larger in tonnage than its paired condenser. This is intentional, to maintain the overall efficiency of the entire system.
Please note that in order for this coil to function, a furnace or blower and a condenser is required, all sold separately.

Warranty

The CAPF1824A6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CAPF1824A6 evaporator coil is able to be installed in upflow and downflow applications. With its rust-resistant, thermoplastic drain plan, water retention rate is significantly lower than previous models. For even more enhanced durability, the cabinet is made of a strong galvanized-steel with a leather-grain finish. If you ever need to perform maintenance on your coil, there is a split-seam on the front of the casing for easy internal access.
Please note that this coil will not work as a replacement for any single-piece air handler coils.

Enhanced Comfort

The CAPF1824A6 evaporator coil’s foil-faced insulation lowers air leakage, increasing the amount of air flow going into your ductwork, keeping you more comfortable while decreasing the unit’s run time. With compatible equipment, the CAPF1824A6 evaporator coil lives up to Goodman’s enhanced comfort and efficiency standards at a reasonable price.

1.5 Ton 13 SEER Goodman Air Conditioner Condenser

OVERVIEW

The Goodman GSX130181 is a cooling-only condenser unit. Providing a 13 SEER efficiency with a single stage, reciprocating compressor, the GSX130181 is an inexpensive condenser to cool your home when paired with an AC coil.

QUICK FACTS

  • Ideal size to cover a smaller house
  • 1.5 ton, 13 SEER AC-only condenser
  • Low sound output
  • Fully charged for up to 15’ of line set
  • Factory-installed filter drier
1.5 ton

The GSX130181 condenser is a 1.5 ton AC only unit. In an ideal climate situation, the GSX130181 can usually cover a smaller house. For this unit to function, an indoor air handler or coil is required, and this unit is cooling only with no heating capacity on its own.

13 SEER

The Goodman GSX130181 AC condenser is designed to be 13 SEER. This is the lowest efficiency on the market today, making it an inexpensive option for northern states. Please note that this product is regulated by DOE Efficiency Standards.

Due to state laws for minimum required efficiency, please note that this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia. For condensers that are at least 14 SEER, making them compliant in most of these states, click here. If you have any questions, please contact us.

Warranty

The GSX130181 condenser comes with Goodman’s standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

With an enhanced copper tube and aluminum fin coil, the GSX130181 is designed to prevent coil degradation. With the baked-on powder-paint finish, the condenser’s heavy-gauge galvanized-steel cabinet is approved for up to 500 hours of salt-spray. The factory-installed filter dryer lowers general wear-and-tear on the unit. All of these features provide you with a durable, reliable condenser to be used whenever you need to cool your home.

Installation and Maintenance

The Goodman GSX130181 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.

Comfort in Mind

The Goodman brand always has its customer’s comfort in mind. The GSX130181 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.

Specifications

40,000 BTU 80% AFUE Multi-Speed Single Stage Goodman Gas Furnace - Downflow/Horizontal

skuGCES800403AN
manufacturerGoodman
afue80%
heating_btu40,000
blower_motorMulti Speed - ECM
cfm1400
configurationDownflow/Horizontal
exhaust_pipeMetal
flue_requirementMetal
electrical115 V. 1 Phase 60 Hz
burner_stagesSingle
fuel_typeGas
height33 3/8"
width14"
depth28"
weight105.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING


1.5 to 2 Ton 14" Width Goodman Vertical Evaporator Cased Coil

skuCAPF1824A6
manufacturerGoodman
configurationUpflow / Downflow
refrigerantR410A or R22
liquid_line3/8"
suction_line3/4"
nominal_capacity1.5 Ton to 2 Ton
styleA-Coil
height18"
width14"
depth21"
weight35.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING


1.5 Ton 13 SEER Goodman Air Conditioner Condenser

skuGSX130181
manufacturerGoodman
cooling_btu18,000
decibel74
refrigerantR410A
seer13
compressor_stageSingle Stage
compressor_typeReciprocating
liquid_line3/8"
suction_line3/4"
liquid_valve_size3/8"
electrical208 / 230 V. 1 Phase 60 Hz
max_breaker_size15 amps
min_breaker_size9.1 amps
nominal_capacity1.5 Ton
valve_typeSweat
height25.75"
width23"
depth23"
weight120.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING
