Details

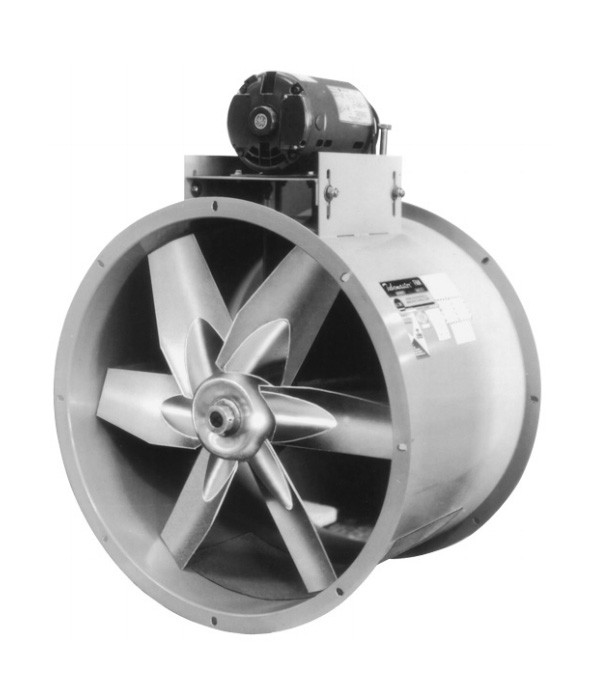

Model HA fan is a belt drive, tubeaxial exhauster with the motor, drives and bearings located outside the airstream. This model has a max CFM of 5,860. The HA is designed to operate in any position and is furnished with mounting flanges on both ends for easy installation.
Housing
- Constructed of heavy gauge rolled steel
- Rolled flange at each end for ease of mounting
- Standard charcoal baked enamel finish provides a tough durable surface
- Gasketed access door for servicing on model sizes 42" - 60"
- Streamlined belt and bearing enclosure eliminates turbulence and air drag
Aluminum Propeller
- Heavy duty, all welded aluminum construction standard on all sizes (except 54" and all sizes of the smoke exhaust construction which use a high grade steel)
- Circular-arc blades for high airflow capacity
- Precision balanced for smooth vibration free operation
Bearings
- Permanently lubricated in an Acme D.S. pillow block housing
- Bearings are resiliently mounted in neoprene rings
- Rated at L50 life of 200,000 hours
- 5 year limited warranty on Acme D.S. pillow block bearings
- Pillow block bearings are standard on HA60 and smoke exhaust construction
Drive Assembly
- Cast iron drives sized for 150% of drive horsepower
- Static free, oil and heat resistant belts
Motors
- Continuous duty motors located outside the airstream
- Motors shipped mounted to the fan
Additional Information
SKU | U HA18K-2495 RPM-1.5HP-208-230/460-3PH |
---|---|
Manufacturer | US Fan |
Drive Type | Belt |
Maximum CFM | 5860 |
Sone | 44 |
Propeller Diameter | 18 inches |
Motor RPM | 2495 |
Horsepower | 1.5 |
Horsepower | 1.5 HP |
Weight (in lbs) | 88.0000 |
Warranty | 2 Year Comprehensive Warranty, 5 Year Bearing & Shaft Warranty |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
