5 Kilowatt 17,000 BTU AirQuest Heater Coil

This 208/230 volt heater coil can be added to a AirQuest air handlers to provide winter-time heating capabilities. Produces 17,000 BTUs of heat.

7 Kilowatt 23,800 BTU AirQuest Heater Coil

This 208/230 volt heater coil can be added to a AirQuest air handlers to provide winter-time heating capabilities. Produces 23,800 BTUs of heat.

10 Kilowatt 34,000 BTU AirQuest Heater Coil

This 208/230 volt heater coil can be added to a AirQuest air handlers to provide winter-time heating capabilities. Produces 34,000 BTUs of heat.

15 Kilowatt 51,000 BTU AirQuest Heater Coil with Single Point Wiring Kit

This 208/230 volt heater coil can be added to a AirQuest air handlers to provide winter-time heating capabilities. Produces 51,000 BTUs of heat. This heater coil comes with the single point wiring kit.

20 Kilowatt 68,000 BTU AirQuest Heater Coil with Single Point Wiring Kit

This 208/230 volt heater coil can be added to a AirQuest air handlers to provide winter-time heating capabilities. Produces 68,000 BTUs of heat. This heater coil comes with the single point wiring kit.

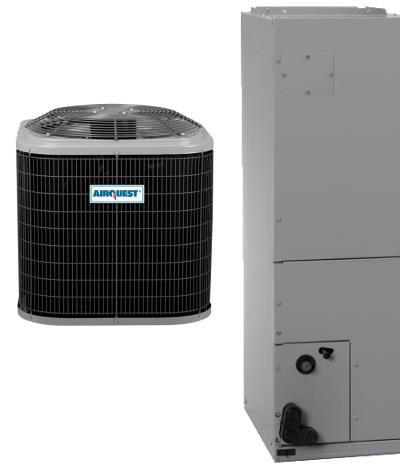

4 Ton 16 SEER AirQuest Heat Pump Condenser

OVERVIEW

The AirQuest NXH648GKA is a standard heat pump condenser. Designed with comfort in mind and a high efficiency rating for nearly any application, this condenser is considered a good all-around option for almost any all-electric split system application.

QUICK FACTS

• 4 ton, 16 SEER heat pump condenser
• Can heat and cool up to a large house in average conditions
• Single Stage
• Filter drier included to be field-installed

4 Tons

The AirQuest NXH648GKA heat pump condenser has an output of 4 tons, generally enough to heat and cool up to a large house in ideal climates. In many system configurations, the tonnage of the unit???s paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit.
Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work. This unit will also only heat down to around 35??F, and if you need heat any lower than this, a backup heat strip will be needed to act as straight electric heating in a compatible air handler.

16 SEER

The AirQuest NXH648GKA air conditioner condenser is rated at 16 SEER, making it approximately 12% more efficient than the minimum efficiency 14 SEER units, saving you money in electric bills over the entire lifetime of your unit. In general, heat pumps will heat more efficiently than straight electric furnaces, making them an excellent and money-saving solution for almost any all-electric solution, especially when you have a lot of heating during outdoor temperatures ranging from when you start using your heating system all the way down to 35??F.

AirQuest offers a 10 year parts warranty on its condensers. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.

The cabinet of AirQuest units are extremely durable. On the NXH648GKA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.

5 Ton Multi-Positional AirQuest Air Handler

OVERVIEW

With its efficient ECM blower motor and factory-installed TXV kit, the AirQuest FEM4X6000BL is a convenient and efficient air handler to provide comfort to your home. If you want superior quality and enhanced comfort, look no further than this model.

QUICK FACTS

• 5 ton air handler
• Efficient ECM blower motor
• Multi-positional—can be installed in the upflow, downflow, and horizontal configurations
• Factory-installed TXV kit for enhanced energy optimization
• Compatible with both AC-only and heat pump condensers
• Sturdy, fully insulated cabinet

5 Tons

The AirQuest by Carrier FEM4X6000BL air handler is rated for an output of 5 tons. In many cases, this air handler will be larger in tonnage than the condenser it is paired with to maintain the unit’s overall efficiency.
Please note that for this unit to provide cooling, an outdoor condenser is required for it to function. The unit can support electric heating as a straight electric furnace or as a backup for a heat pump, offered at an additional cost to be field installed.

Warranty

AirQuest offers a 10 year no hassle replacement warranty, as well as a 10 year parts warranty on this unit. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer. After your purchase, a representative will reach out to you to retrieve installation information so we can register the product for you.

To make a more versatile unit, AirQuest by Carrier designed the FEM4X6000BL to easily be installed in an upflow, downflow, or horizontal position. A TXV kit is already installed on the unit so your installer does not have to install one, decreasing installation costs. For durability, the FEM4X6000BL air handler is designed with an extremely strong, one-piece outer casing to protect the unit, and the coil is designed with corrosion-resistant aluminum.

The FEM4X6000BL air handler has an efficient ECM blower motor, providing a more stable temperature in your home, making you more comfortable. The control board will automatically communicate with your thermostat to adjust the output of the blower to suit your needs. With this intelligent comfort and efficiency, the FEM4X6000BL meets AirQuest’s superior standards to be a part of the Carrier family of units.

30 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set

Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.

50 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set

Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
